2020 How to see radio waves from your smartphone?

Detecting electromagnetic waves with antennas

01-12-2020 -
session

First it was all about detecting invisible electromagnetic waves like radio and WiFi.

Light on the other hand is also an electromagnetic wave but it is visible to us humans. Of course radio communication is best picked-up with an antenna. And in order to tell where it comes from the antenna was required to be directional, which means it detects waves best when they hit the antenna up front.

This was the first prototype towards a visualization of radio waves.

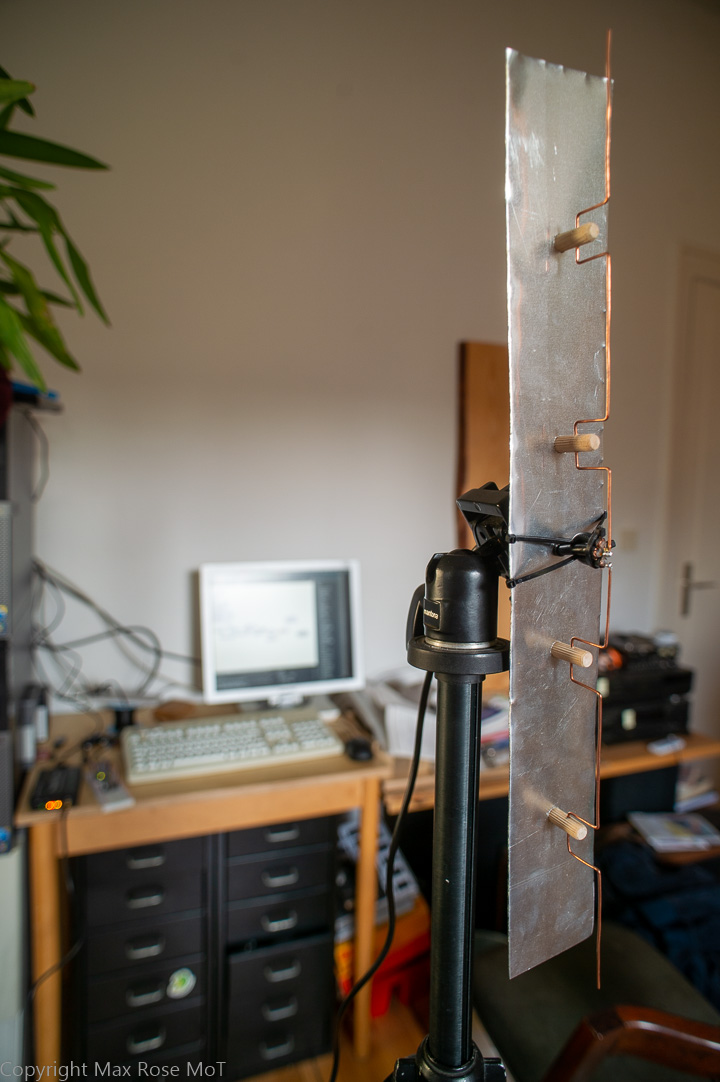

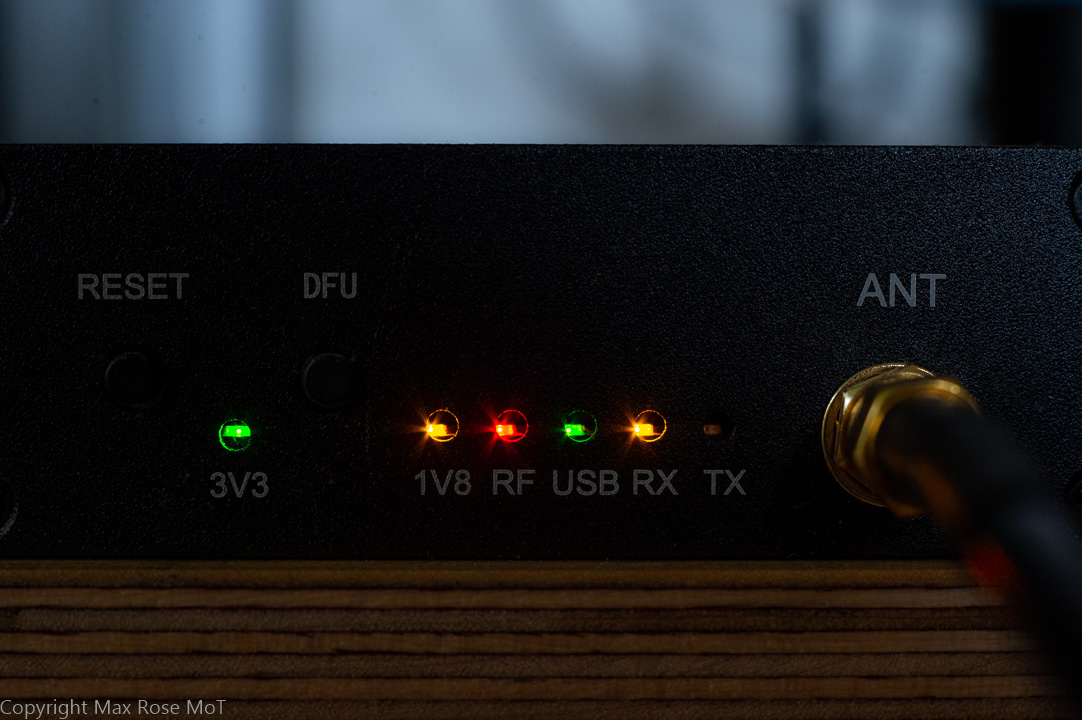

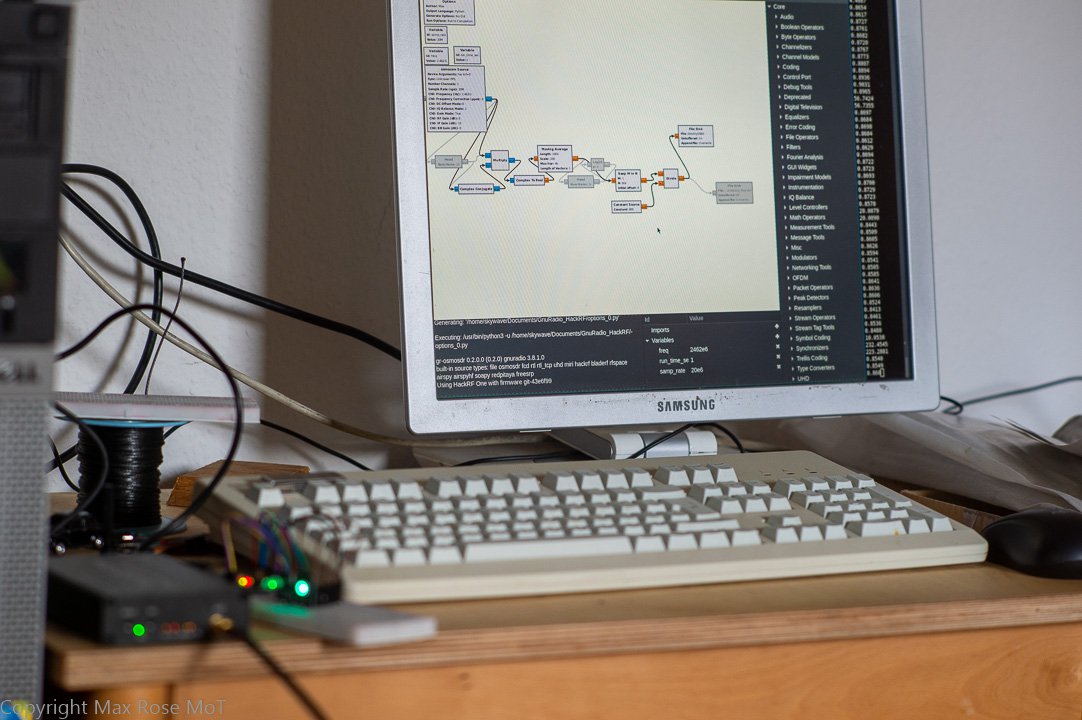

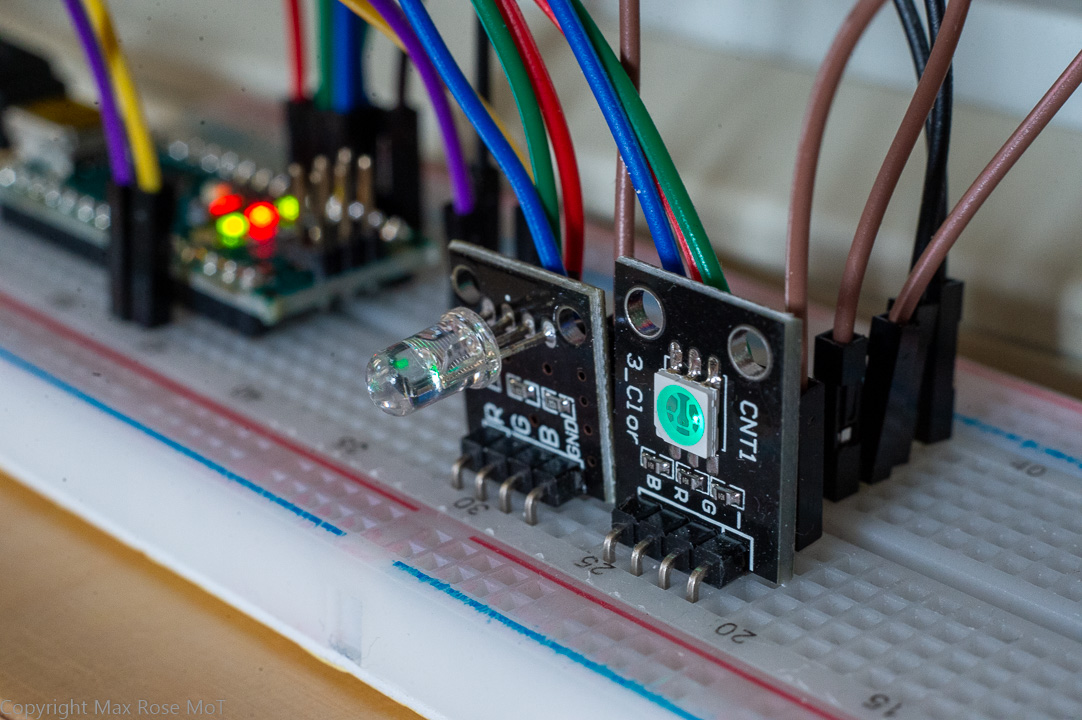

GnuRadio Sector Antenna Arduino and status LEDs SDR Device
